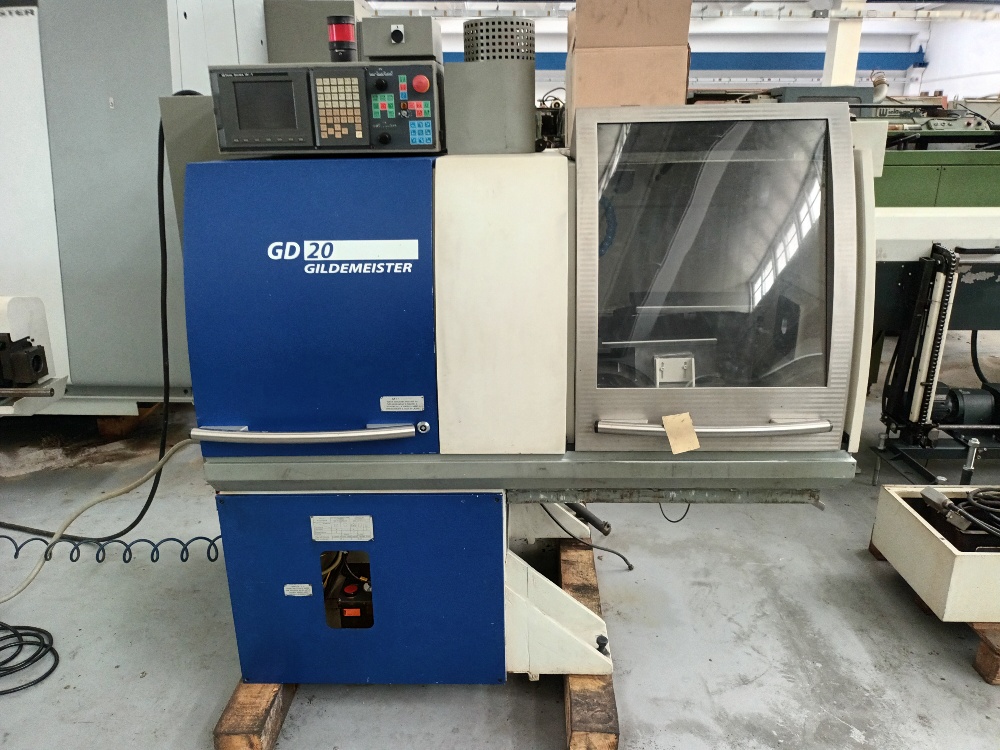

Four axis sliding head Cnc lathe Gildemeister GD 20-4A

  • Item number: C00392
  • Brand: Gildemeister
  • Model: GD 20-4A
  • Year: 2001

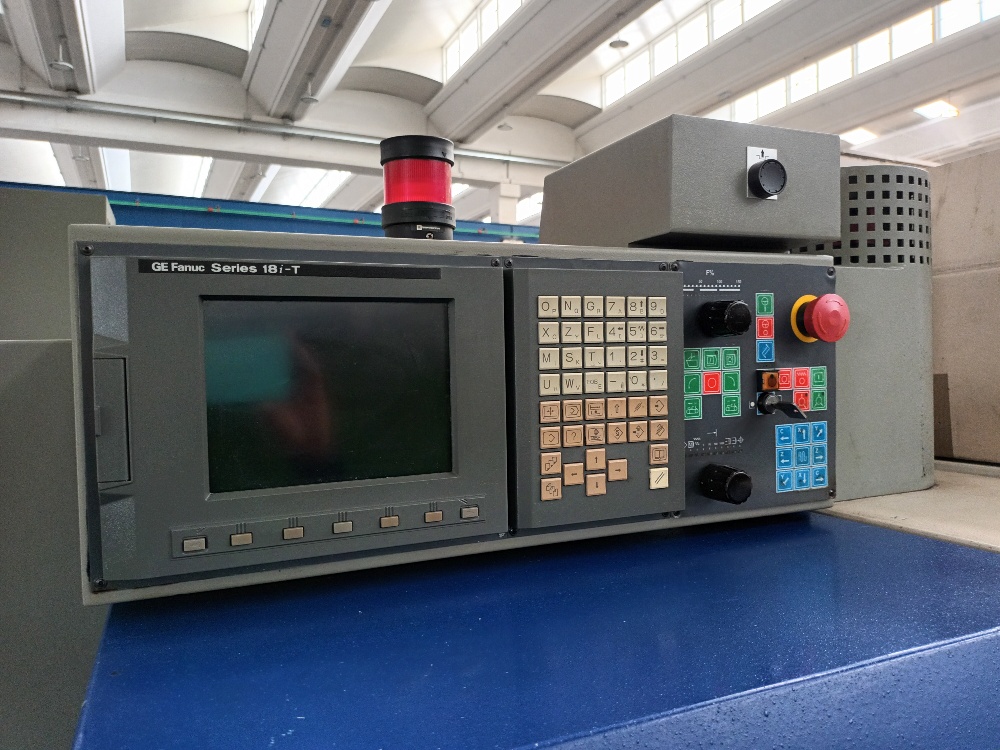

  • Control: Ge Fanuc 18i-TA
  • Serial number: 5500-0325

5 fixed turning tools - 3 driven tools - device with 3+3 fixed tools -

sub spindle with long part ejector



Sliding head with electro-spindle integrated (Z1 axis)



Bar capacity 20 mm - Max headstock stroke 160 mm -

Main/sub spindle speed  8.000 Rpm -

Spindle motor power 2.2-3.7 kW

Speed/power driven tools 6.000 Rpm-1.1 kW



Dimensions: 0000x0000x0000h mm - Weight 1.450 kg

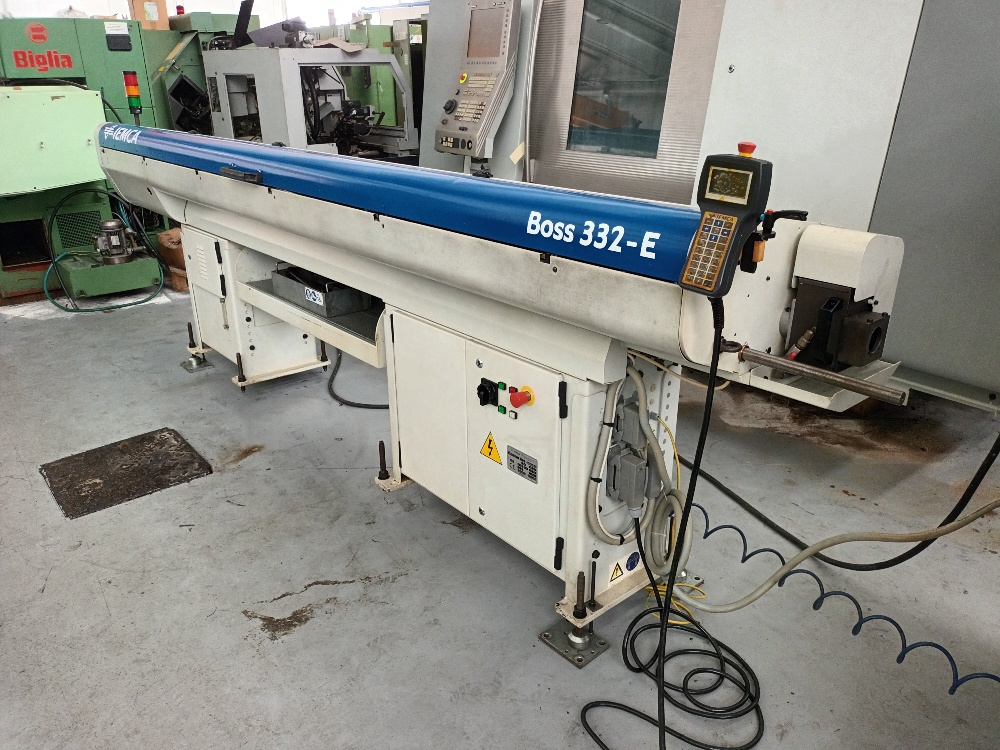

  • Iemca barfeed model Boss 432/32L new in 2002
  • manuals
  • CE Declaration
