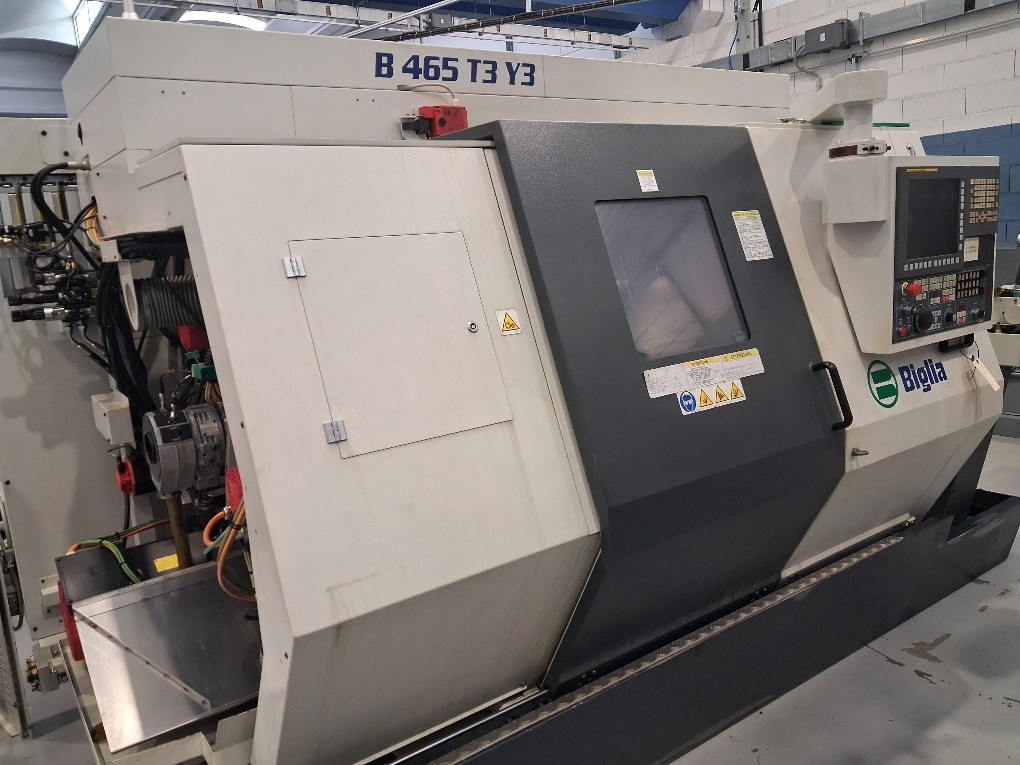

Cnc lathe Biglia B465 T3Y3
- Item number: C00666
- Brand: Biglia
- Model: B465 T3Y3
- Year: 2014
- Control: Fanuc 31i-B
3x12 driven position turrets each with 90 mm Y axis (travel +50/-40 mm)
sub spindle - 2 x C axis.
Main spindle nose JISA2-6 with bar capacity 70 mm
Sub spindle nose JISA2-5 with bar capacity 45 mm
Max turning length 230 mm
Main/sub spindles speed 4000 Rpm -
Main/sub spindle power 22-26/11-7.5 kW
Driven tools speed/power 4000 Rpm/3.7-1.1 kW
Dimension : ....x2132x2188h mm - weight kg. 7800
- special version with X1/X2/X3 transverse carriages that slide on flat guides
- Hainbuch Axfix 65 chuck
- Bellegrandi MSCTNR chuck
- 7 driven tool holders (3 radials + 4 axials)
- 21 standard tool holders
- Marposs Tool Eye with two arms
- parts catcher portal type + double parts belt
- three 7 bar turret pumps + additional 40 bar pump
- coolant refrigerator
- SBS Tool Stress Monitoring
- software rotation plane and inclined rigid tapping
- auto power off function
- Iemca Master UP 80 HF-r/33 barfeed new in 2014
- BRC chio conveyor hinge type new in 2022
- manuals
- EC declarations
