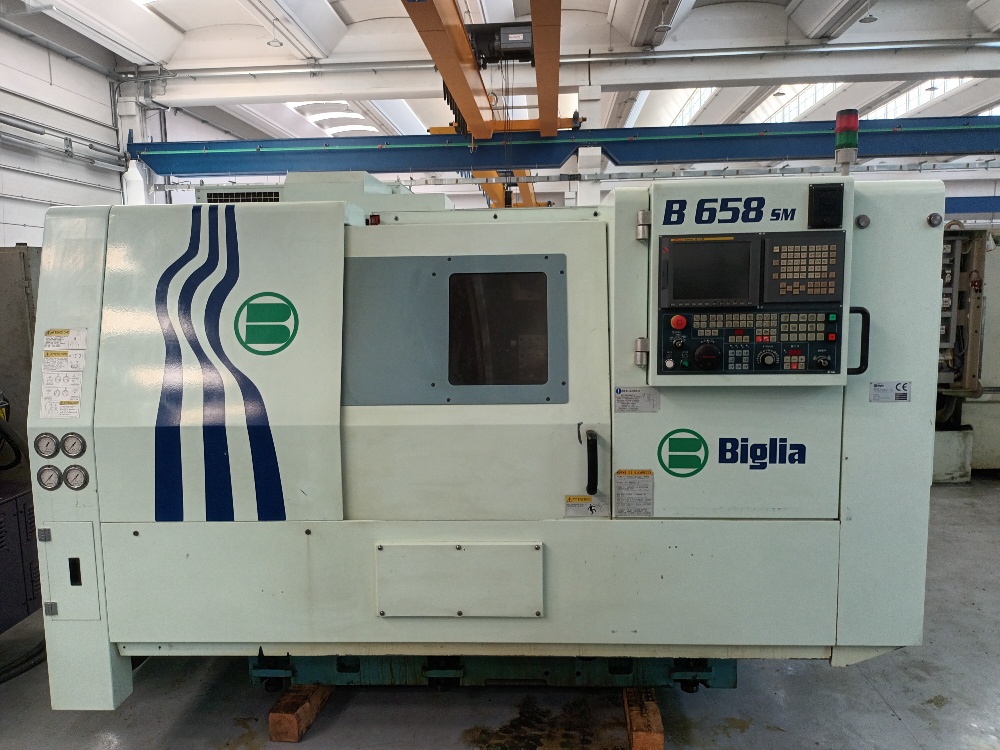

Cnc lathe Biglia B658 SM

Cnc lathe Biglia B658 SM

  • Item number: C00528
  • Brand: Biglia
  • Model: B658 SM
  • Year: 2008
  • Control: Ge Fanuc 18i-TB
  • Serial number: 10403

Biglia turret with 12 driven stations - sub spindle - 2 x C axis



Main spindle A28-bar capacity 80 mm - Max turning length 670 mm

Main/sub pindle speed 3500/4000 Rpm

Main/sub spindle motor power 15-22/15-18 kW

Power/speed rotating tools 3.7 kW/4000 Rpm



Dimensions including chip conveyor : 445x190x210h cm - Weight kg. 6200



  • 13 standard tool holders
  • 2 driven tool holders (1 axial + 1 radial)
  • 2 Smw Autoblok chucks(3jaws 250BB+3jaws 210BH)
  • barfeed interface
  • chip conveyor hinge type
  • manuals
  • CE declaration
🍪
