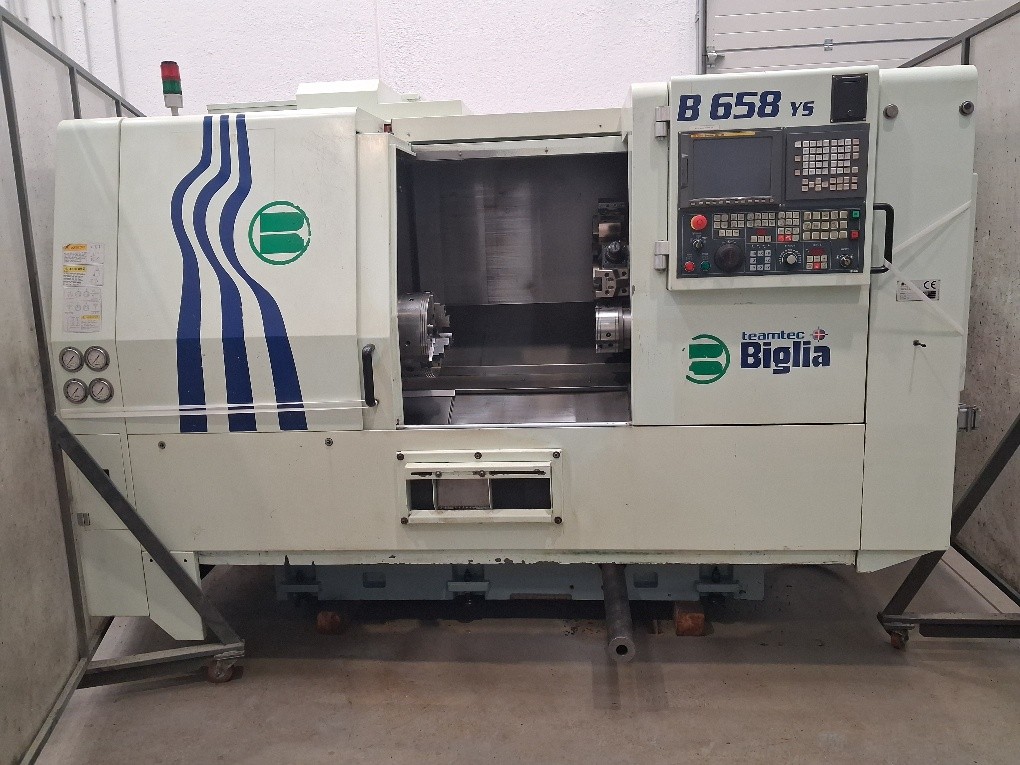

Cnc lathe Biglia B658 YS

Biglia turret with 12 driven stations - sub spindle

2 x C axis - Y axis 110 mm (+60/-50)

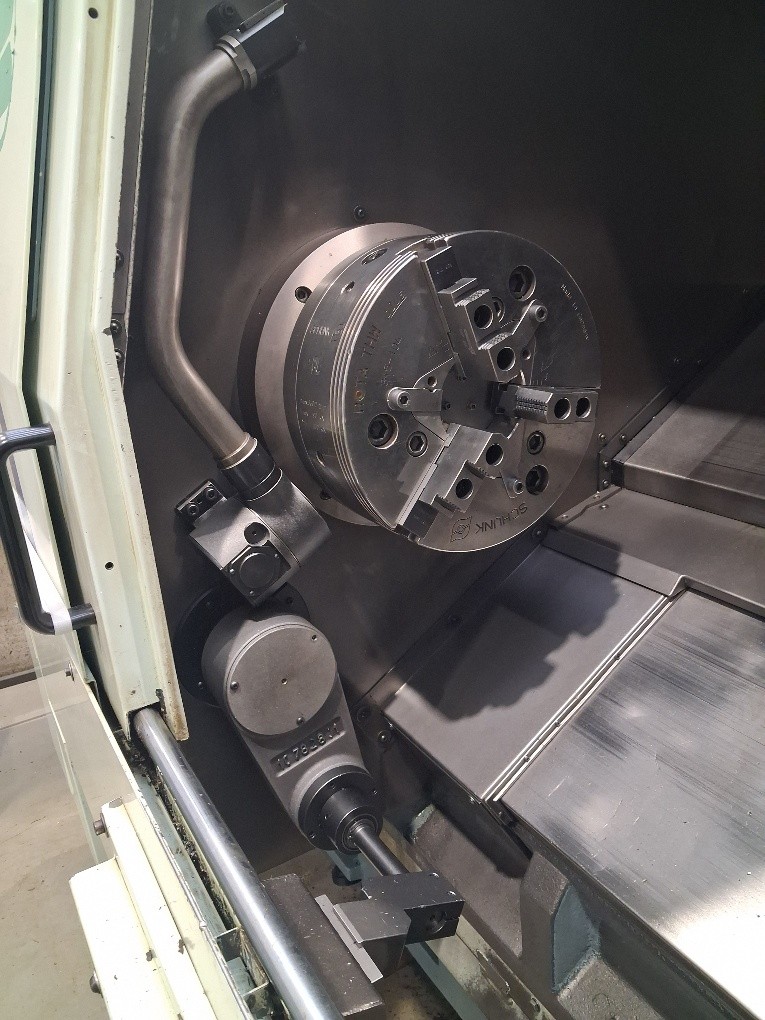

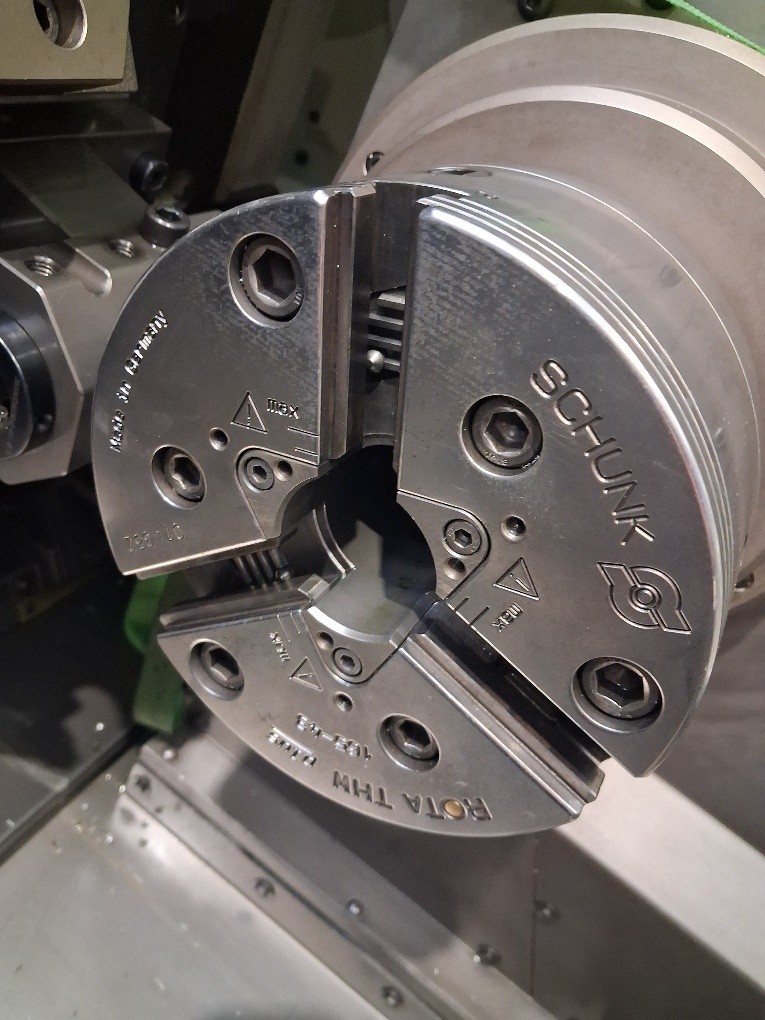

Main spindle ASA 8 with 80 mm bar capacity - sub spindle ASA 5

Max turning length 670 mm

Main/sub pindle speed 3500/4000 Rpm

Main/sub spindle motor power 22/17 kW

Power/speed rotating tools 3.7 kW/4000 Rpm

Dimensions including chip conveyor : 445x190x210h cm - Weight kg. 6200
