Cnc lathe Goodway GTW-1500Y
Cnc lathe Cnc lathe Cnc lathe Cnc lathe Cnc lathe

Cnc lathe Goodway GTW-1500Y

  • Item number: C00592
  • Brand: Goodway
  • Model: GTW-1500Y
  • Year: 2015

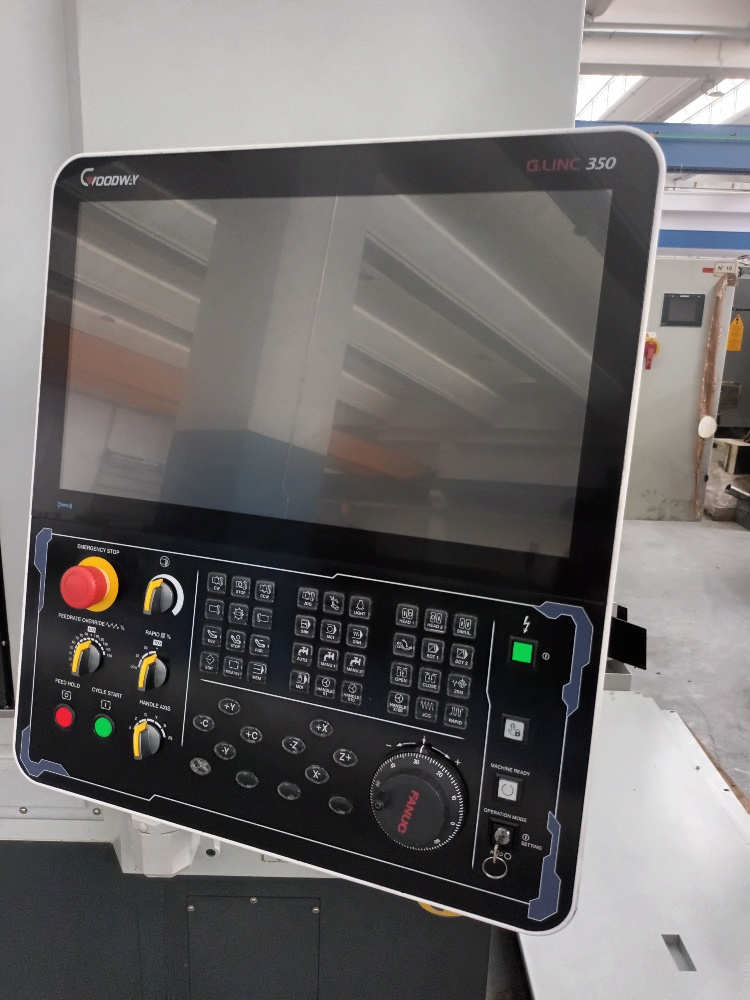

  • Control: Fanuc G-Linc 350
  • Serial number: 102E004
  • Stock state: in stock
Print

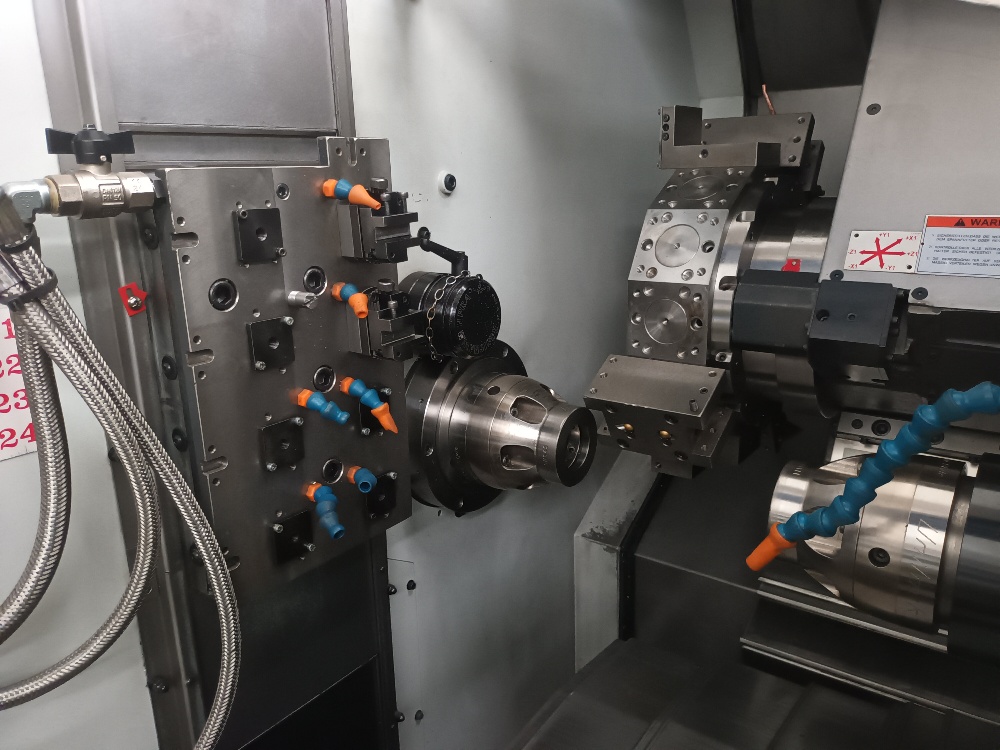

gang tooling system with 8 driven tools - 12 driven position turret

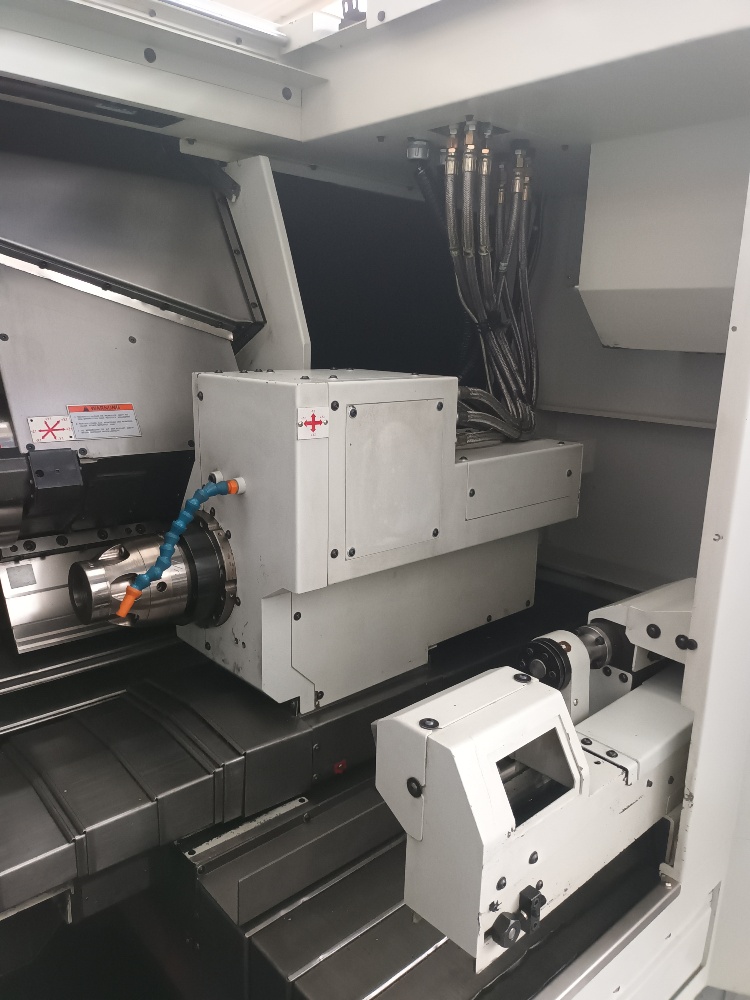

sub spindle with ejector - no. 2 C axis

type of collets Traub 42



Bar capacity main/sub spindle 52/43 mm

Main/sub spindle speed  5000/6000 Rpm

Spindle/counter spindle motor power 11-15/3.7-5.5 kW



Dimension : 2545x2065x2015h mm - kg. 4000











  • 17 fixed toolholders for turret
  • 7 driven toolholders for turret (3 radials + 4 axials)
  • 3 turning + 12 fixed drilling tool holders for gang system
  • 5 driven drilling tool holders for gang system
  • 2 unilock collet chucks for collets Traub 42 type
  • parts catcher + parts belt
  • tool eye
  • HABOR oil cooler mod. HBO-V400PTSBM3 new in 2016

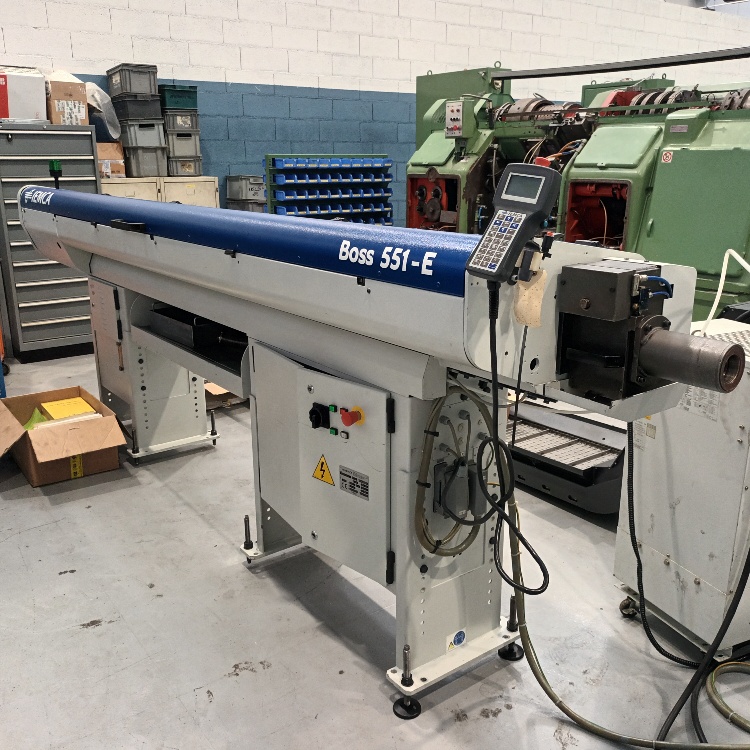

  • Iemca barfeed mod. Boss 551E new in 2006
  • chip conveyor hinge type
  • electrical transformer
  • manuals
  • EC declarations
🍪
