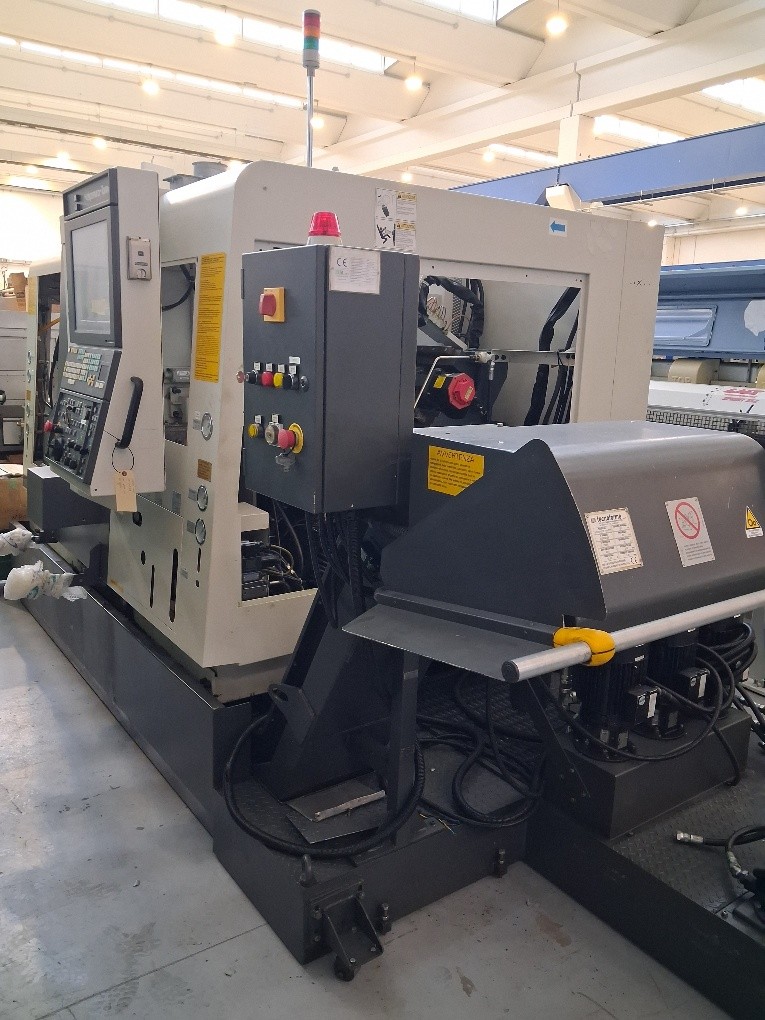

Cnc lathe Nakamura SUPER NTY3-51
- Item number: C00682
- Brand: Nakamura
- Model: SUPER NTY3-51
- Year: 2011

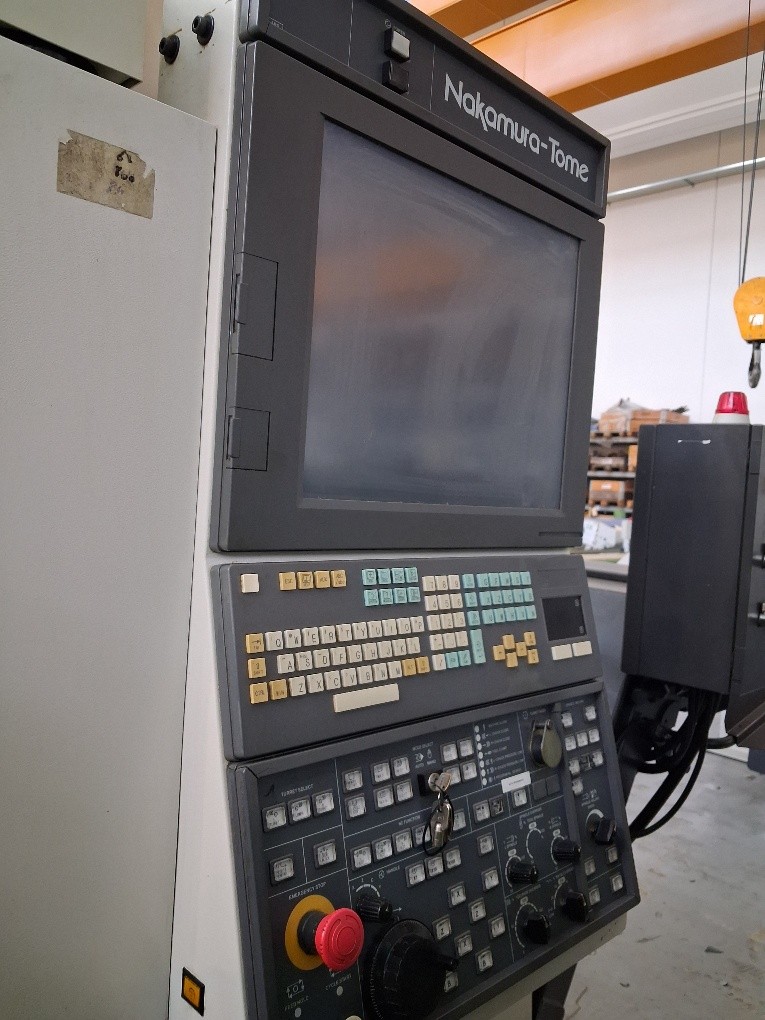

- Control: Fanuc 31i-A
- Serial number: V102909
3x12 driven position turrets each with Y axis (travel +/- 32.5 mm) -
sub spindle - 2 x C axis.
Spindles nose JISA2-5 with bar capacity 51 mm -
Max turning length 570 mm -
Main/sub spindles speed 5000 Rpm -
Main spindle power 11/7.5 kW
Driven tools speed/power 6000 Rpm/2.2 kW
Dimension: 2780x2070x1930h mm - Machine weight kg. 8000
- 28 fixed toolholders (13 drilling + 15 turning)
- 6 driven toolholders (3 radials + 3 axials)
- collet chuck for BA52 collets
- 3 jaws-165 mm Smw Autoblock chuck mod. 165BH
- parts catcher type A + parts belt

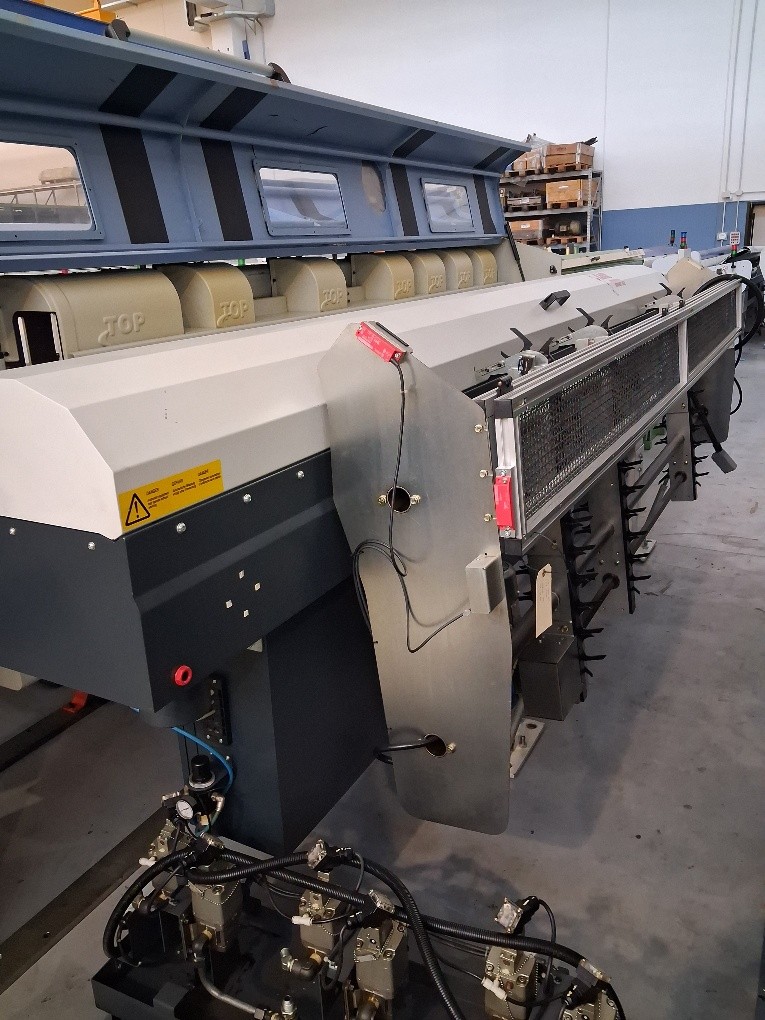

- Lns Sprint 552 barfeed new in 2001 with 51 mm guide channels
- chip conveyor hinge type and right side exit
- electrical transformer
- manuals
- EC declarations
