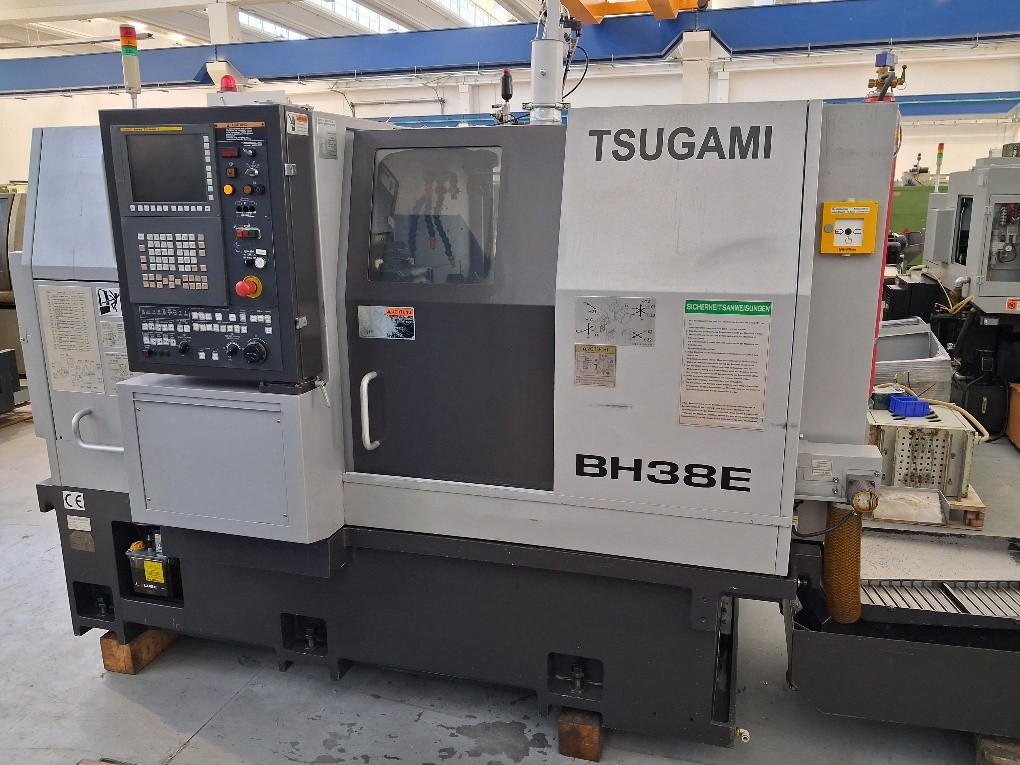

Eight axis sliding head Cnc lathe Tsugami BH 38 E

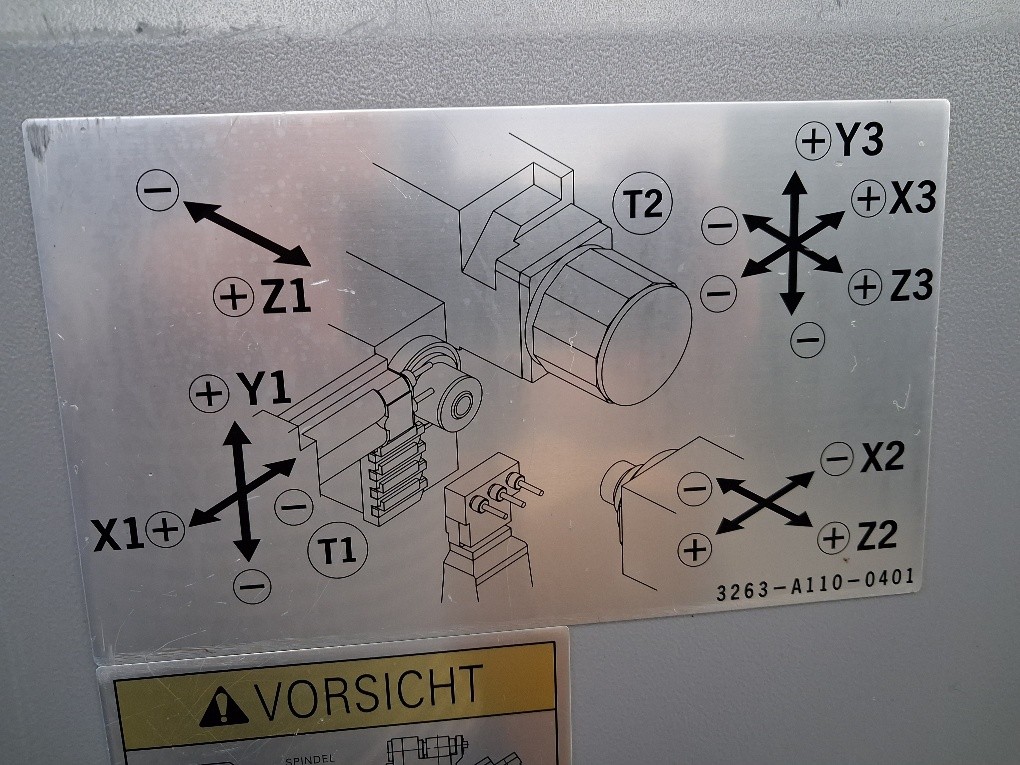

12 driven position turret with Y axis

platen with 5 turning + 3 rotary tools -

3 fixed tool for counter works

sub spindle

5° indexing in main spidle - C axis in sub spindle

Bar capacity 38,1 mm - max headstock stroke 250 mm -

main/sub spindle speed 5,000/7,000 Rpm -

main/sub spindle motor 7.5-11/3.7-5.5 kW

Dimensions: 2730x1790x1700h mm - Weight 5800 kg.
