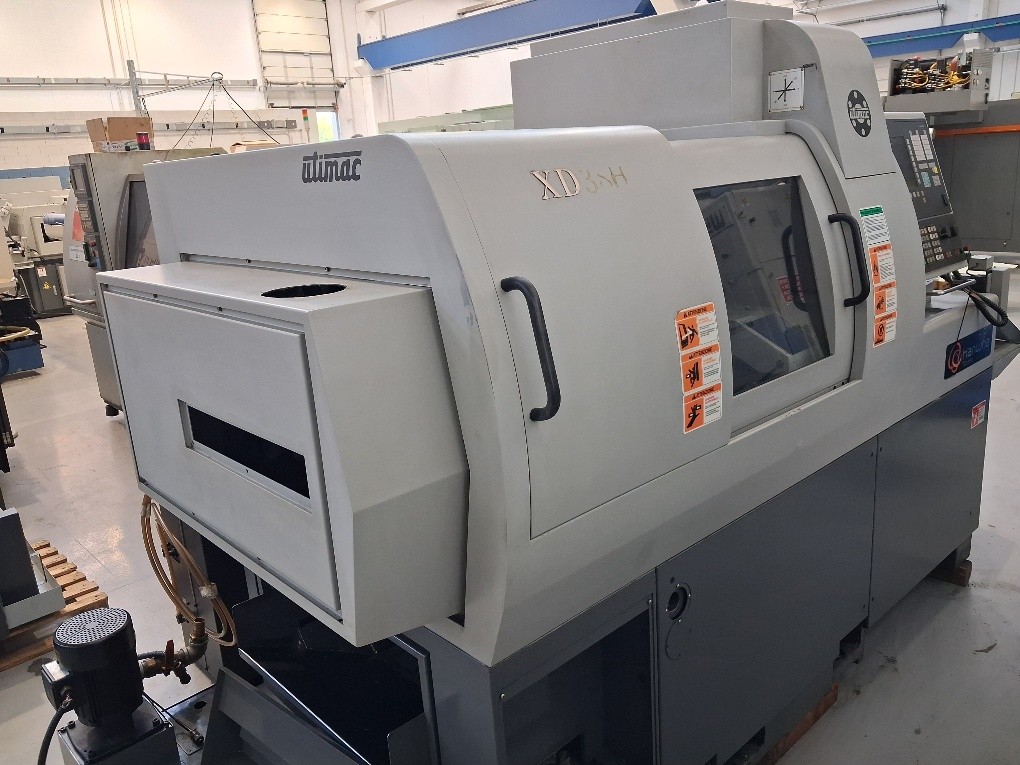

Five axis sliding head Cnc lathe Hanwha XD-38H

5 turning + 4 driven tools (3 spindles available)

5+5 fixed front/rear device (4 single + 2 double tip holders)

4 driven tools for counterworks (4 driven + 2 fixed available)

sub spindle + 2 front driven tools (2 spindles available)

2 x C axis

Bar capacity 38 mm - max headstock stroke 310 mm -

main/sub spindle speed 8.000/7.000 Rpm -

main/sub spindle motor 5.5-7.5/2.2-5.5 kW

Dimensions: 2720x1304x1775h mm - Weight 4.050 kg.
