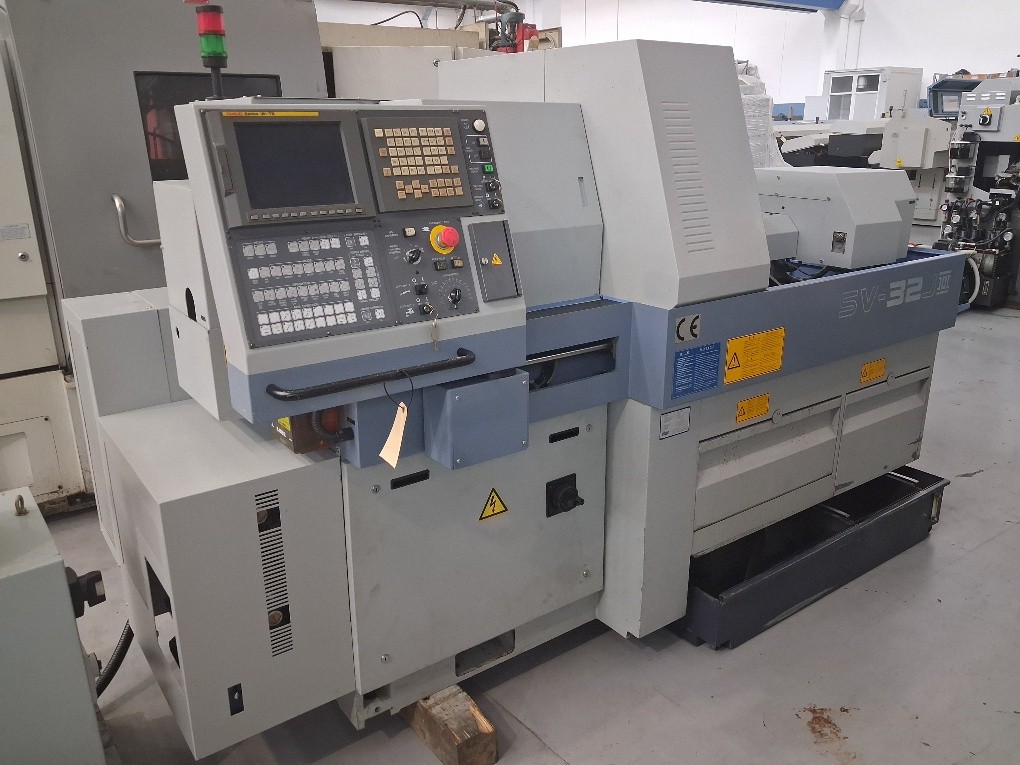

Five axis sliding head Cnc lathe with turret Star SV-32JII

Print Data sheet

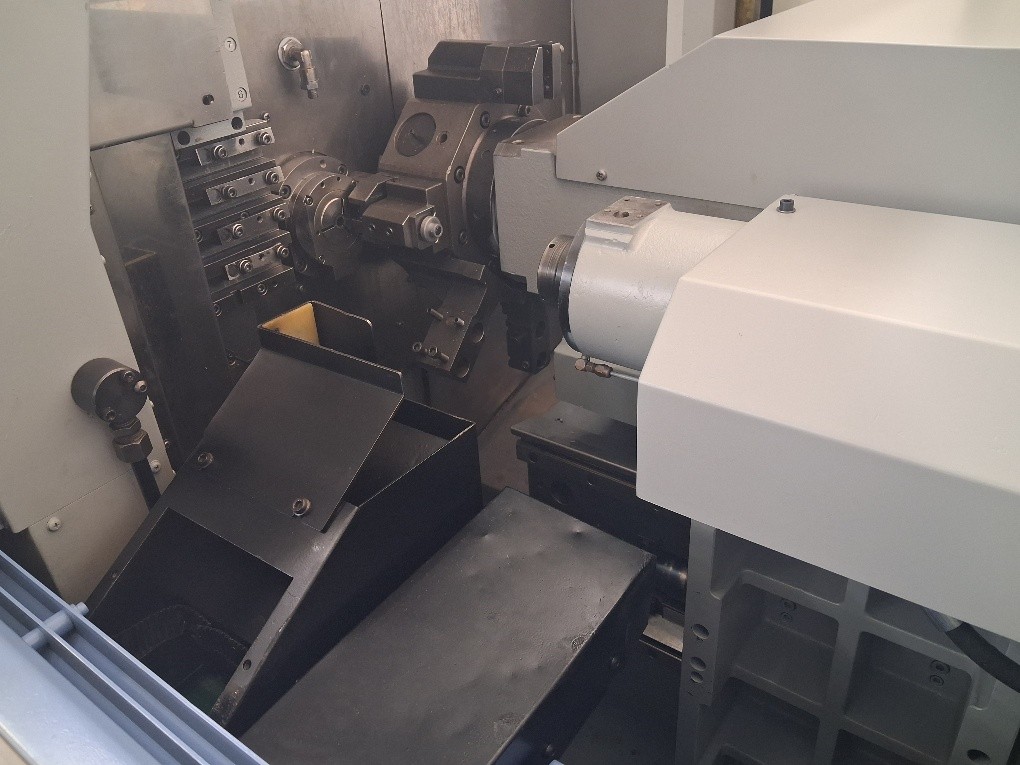

440 type - platen with 4 turning + 3 rotary tools and 8 position turret) - sub spindle -

C axis - sub spindle with .. degree indexing

Bar capacity 32 mm - max headstock stroke 310 mm -

main/sub spindle speed 7.000 Rpm -

main spindle motor 5.5/7.5 kW

Dimensions: 2715x1245x1680h mm - Weight 3.200 kg.

3 driven tool holders for turret (2 radial + 1 axial with 4 positions)
10 fixed tool holders for turret (5 drilling, 4 are double + 5 turning, 4 for counter works, 1 for the main spindle)

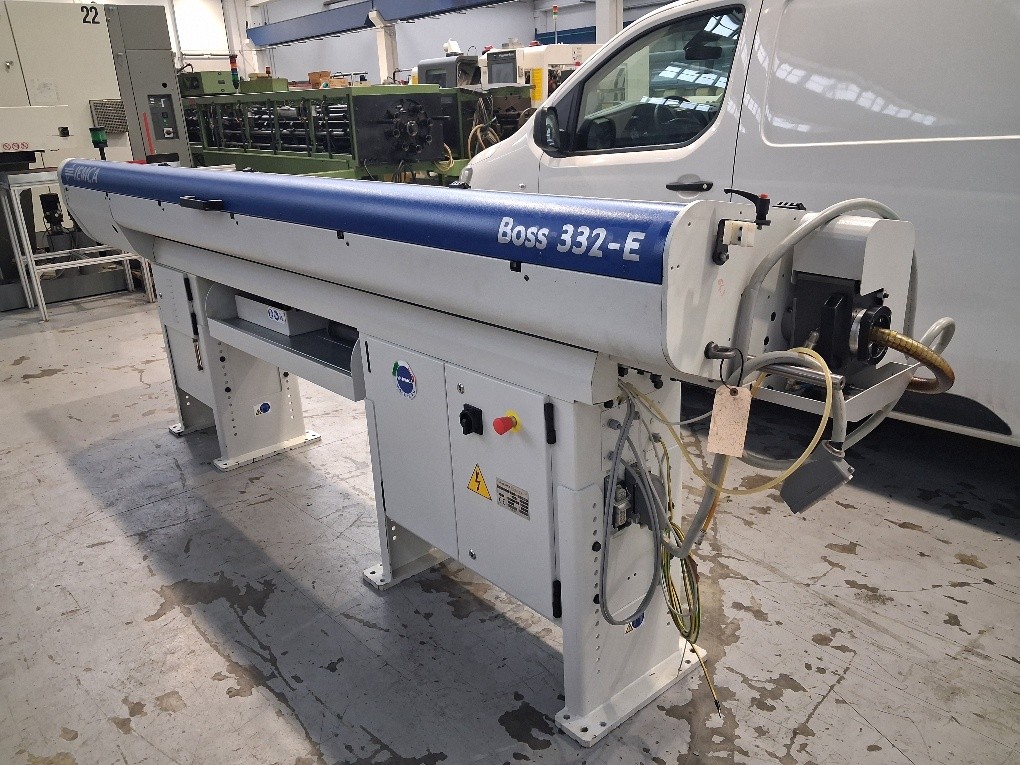

Iemca Boss 332E/32 barfeed new in 2012, with 36 mm guides channels and 34 mm bar pusher
chip conveyor hinge type
parts catcher + parts belt
Manuals
EC declarations
