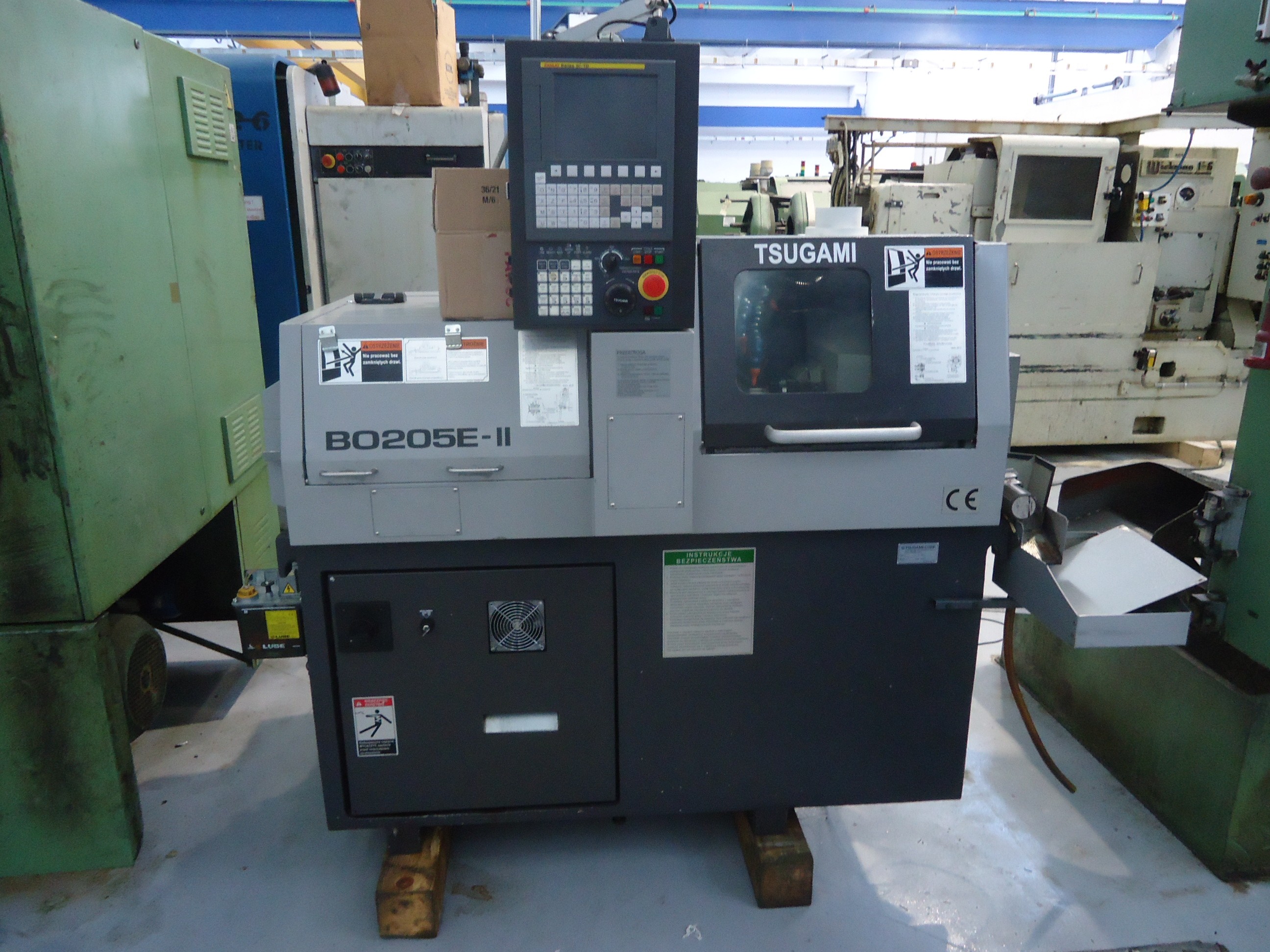

Five axis sliding head Cnc lathe Tsugami BO205E-II

  • Item number: C00470
  • Brand: Tsugami
  • Model: BO205E-II
  • Year: 2014

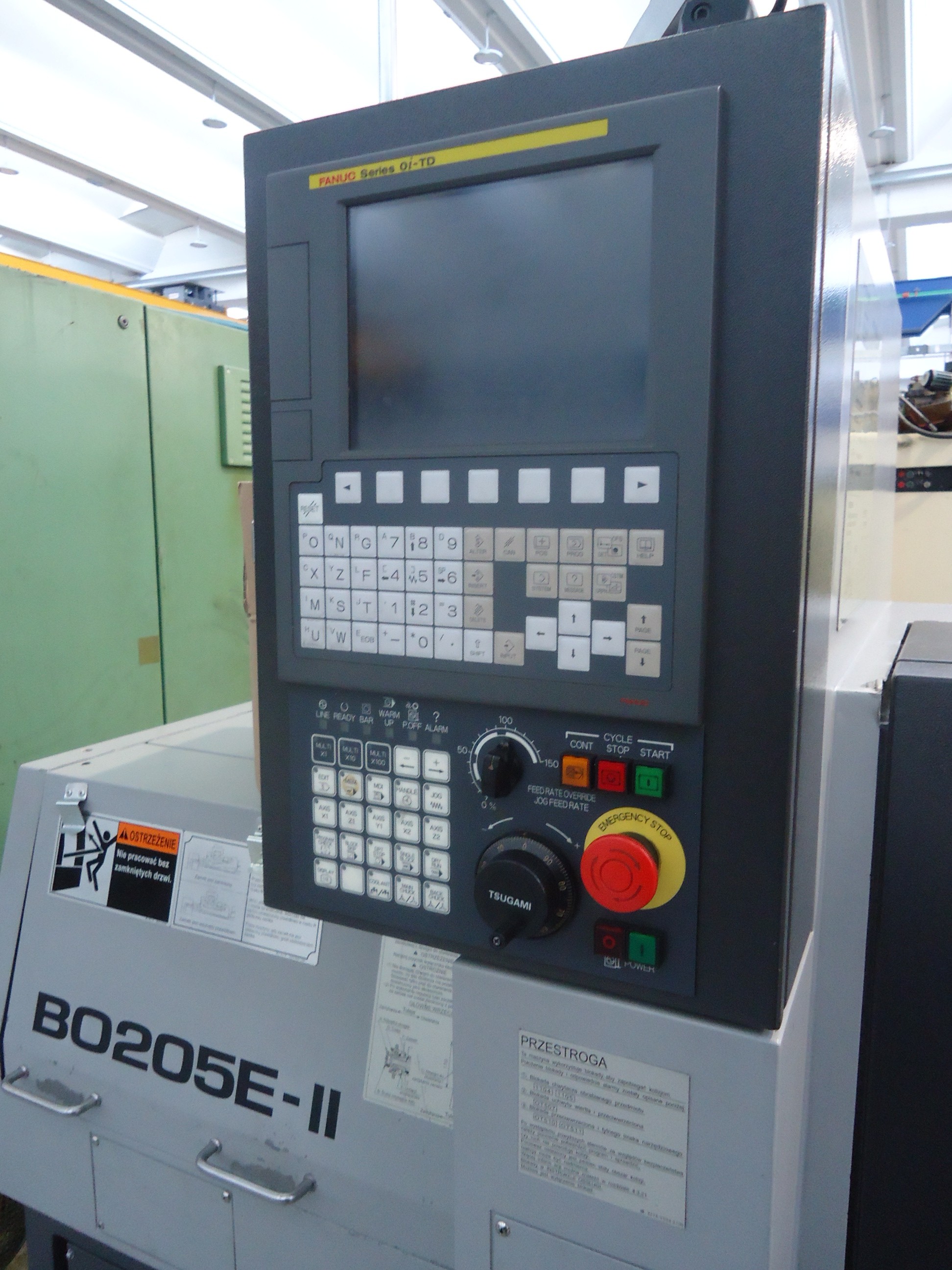

  • Control: Fanuc 0i-TD
  • Serial number: 22035A

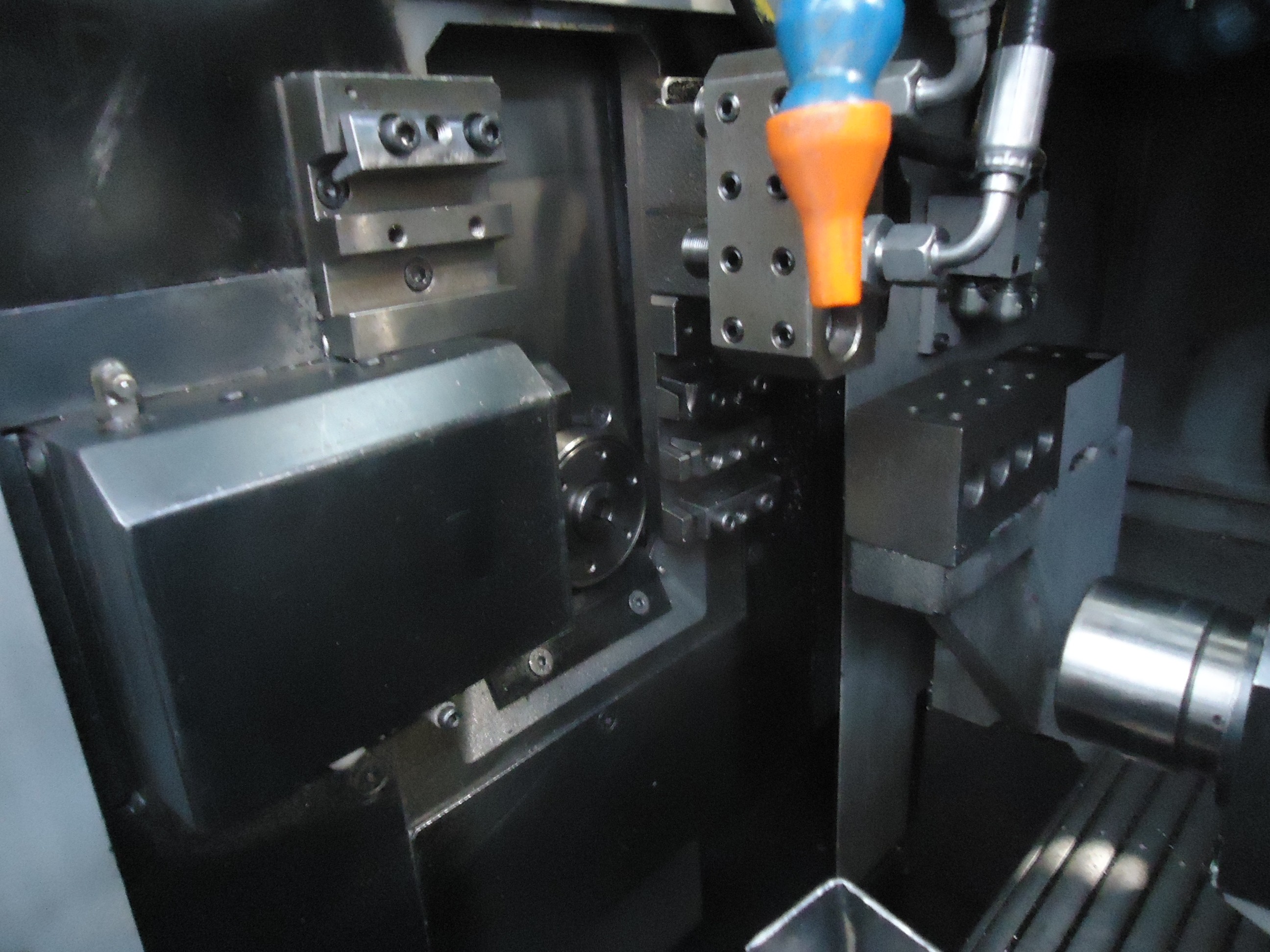

2 turning + 3 driven on the left platen - 3 turning to the right platen -

device for 4 front-end working stationary tools + 4 rear-end working stationary tool -

4 fixd tools for counter working - sub spindle - C axis



Bar capacity 20 mm - max headstock stroke 80 mm -

spindles speed 12.000 Rpm -

main/sub spindle motor 1.5/2.2 kW



Dimensions: 1640x1080x1700h mm - Weight 1700 kg.

  • chip conveyor hinge type
  • Lns Express 226 barfeed new in 1999 with 3 kit for 7-16-20 mm + 7 collets
  • parts catch + parts belt
  • rotating bushing
  • elctrical transformer
  • manuals
  • CE declarations
🍪
