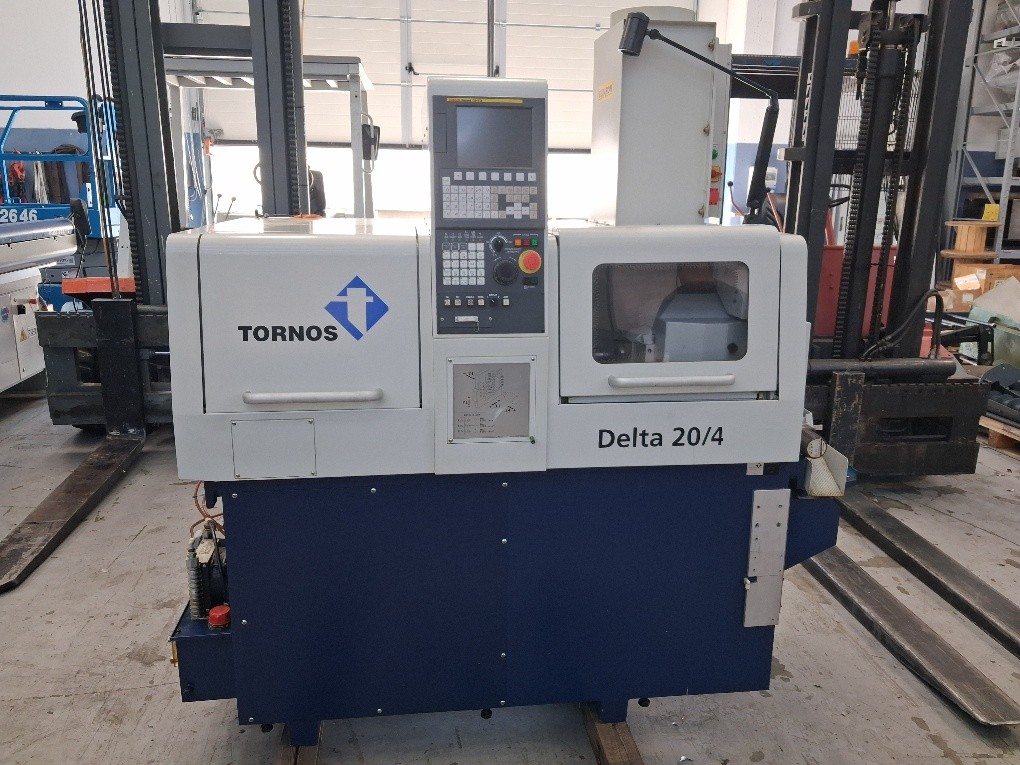

Four axis sliding head Cnc lathe Tornos DELTA 20/4
Four axis sliding head Cnc lathe Tornos DELTA 20/4
Four axis sliding head Cnc lathe Tornos DELTA 20/4
Four axis sliding head Cnc lathe Tornos DELTA 20/4
Four axis sliding head Cnc lathe Tornos DELTA 20/4
Four axis sliding head Cnc lathe
Four axis sliding head Cnc lathe
Four axis sliding head Cnc lathe
Four axis sliding head Cnc lathe
Four axis sliding head Cnc lathe

Four axis sliding head Cnc lathe Tornos DELTA 20/4

  • Item number: C00681
  • Brand: Tornos
  • Model: DELTA 20/4
  • Year: 2008

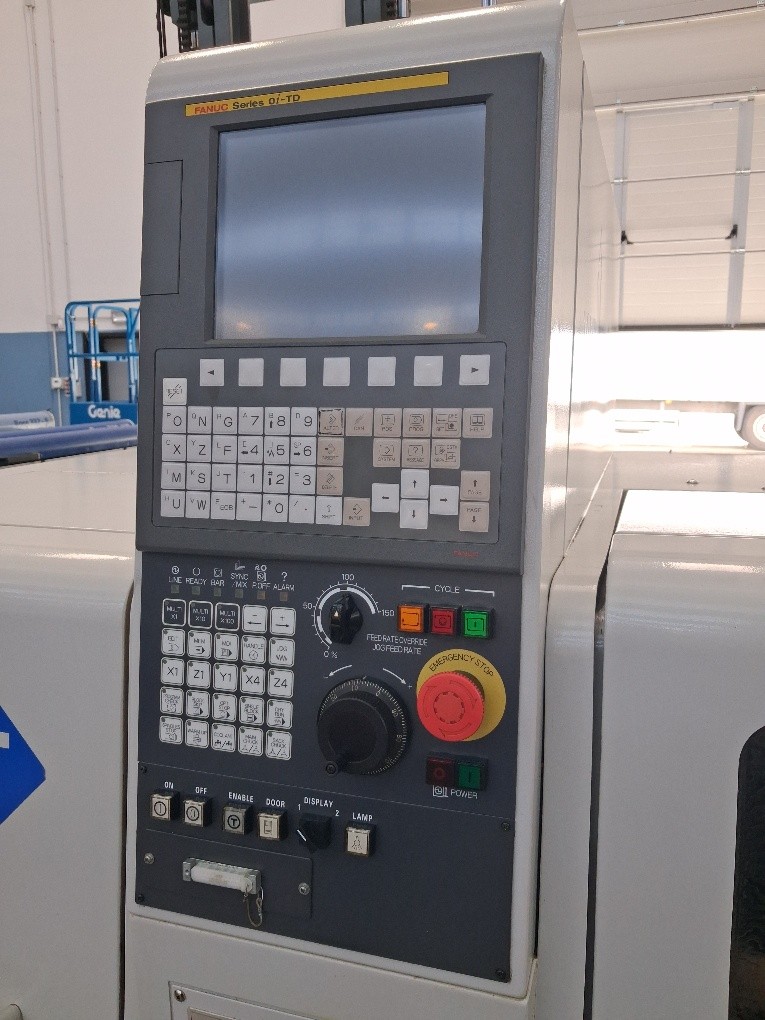

  • Control: Fanuc 0i-TD
  • Serial number: 42100146
Print

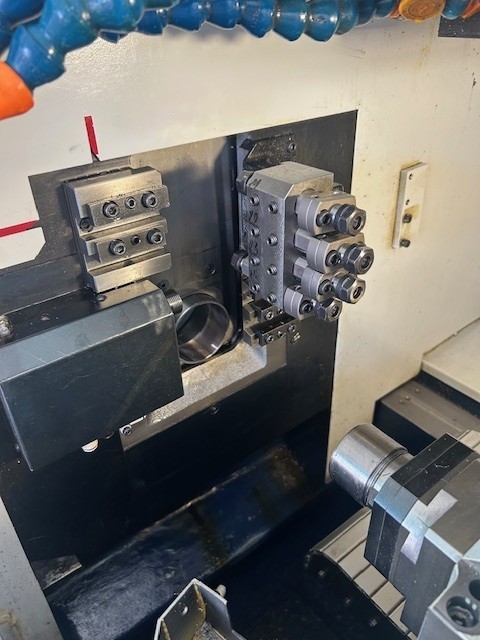

2+3 turning tools / 4 drilling tools / 3 cross rotary tools

sub spindle

C axis in main spindle - 1° indexing in sub spindle

THE LATHE CAN WORK WITH OR WITHOUT A GUIDE BUSH



Bar capacity 20 mm

max headstock stroke :

170 mm with fixed guidebush / 80 mm with synchro guidebush / 45 mm without guideb.

main/sub spindle speed 12.000 Rpm

main/sub spindle motor 3.7-1.5/2.2-1.5 kW



Dimensions: 1870x1170x1725h mm - Weight 1700 kg.

  • fixed and rotating guide bush
  • 4 double tip holders

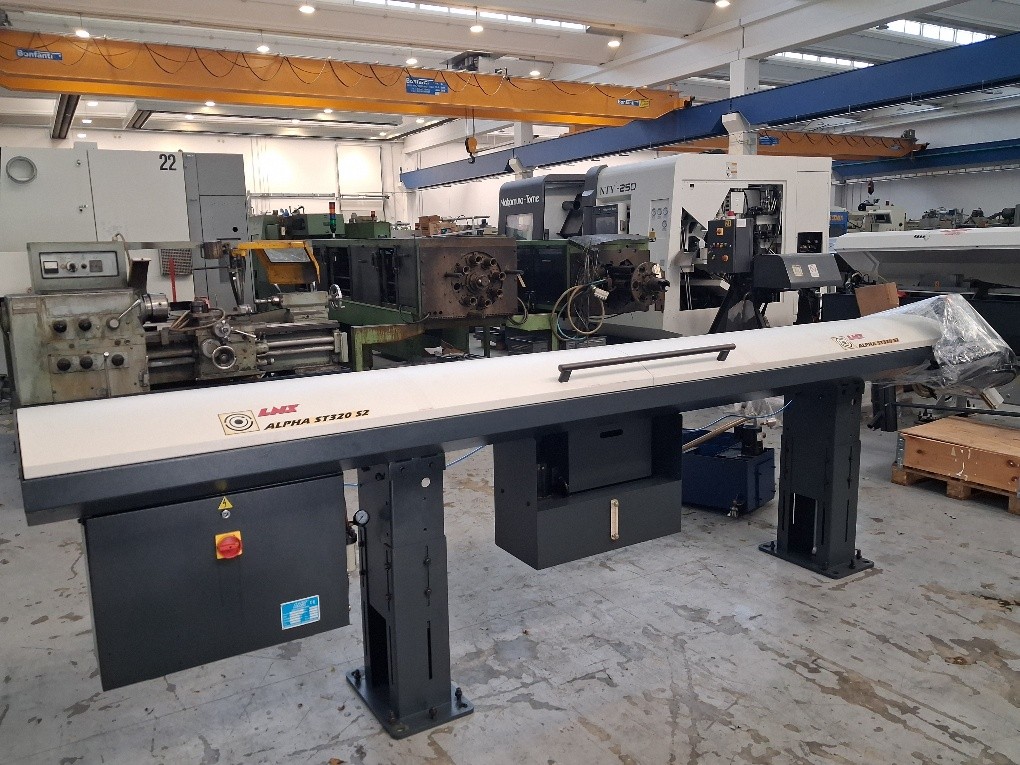

  • Lns barloader mod. Alpha ST320 S2 new in 2011 with 4 channels (8-11-14-19 mm) and 3 bar pushers (7-10-18 mm)
  • ELBARON air cleaner mod. RON/A 60 DV new in 2011
  • electrical transformer
  • service keys
  • manuals
  • EC declarations



🍪
