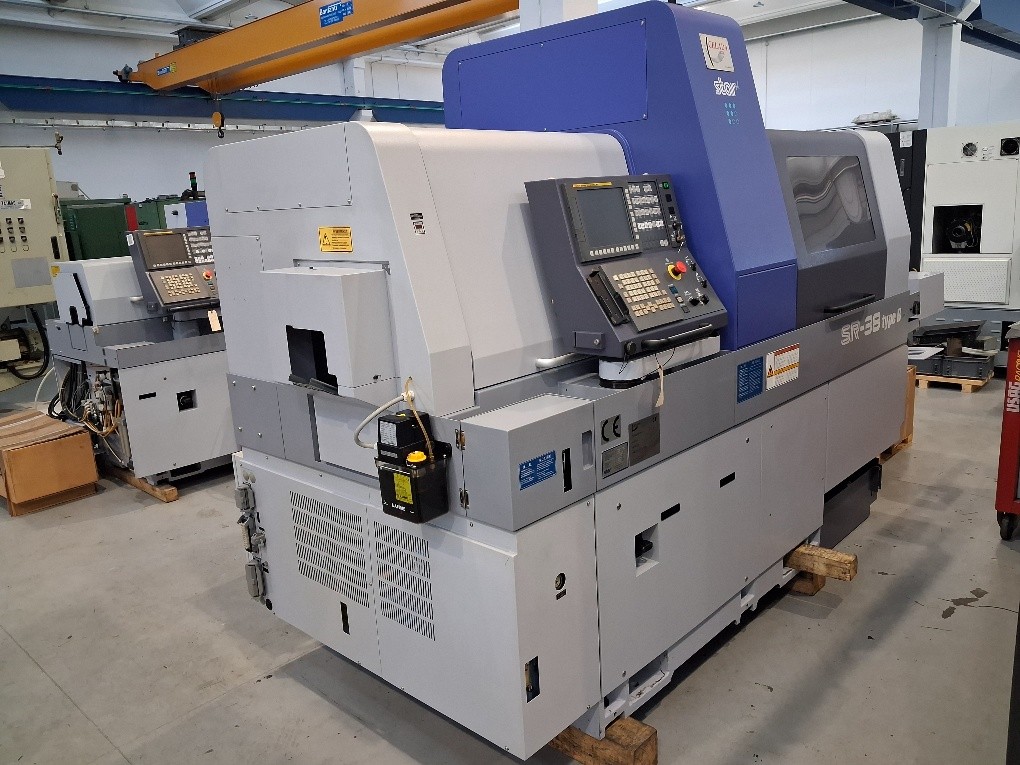

Seven axis sliding head Cnc lathe Star SR-38 type B

5 stations for fixed turning tools (4 of 16x16 - 1 of 20x20)

2 stations for fixed turning tools (16x16 for 2 X axes)

5 stations for 5 collet holders for front/rear machining

station for 6 rotating

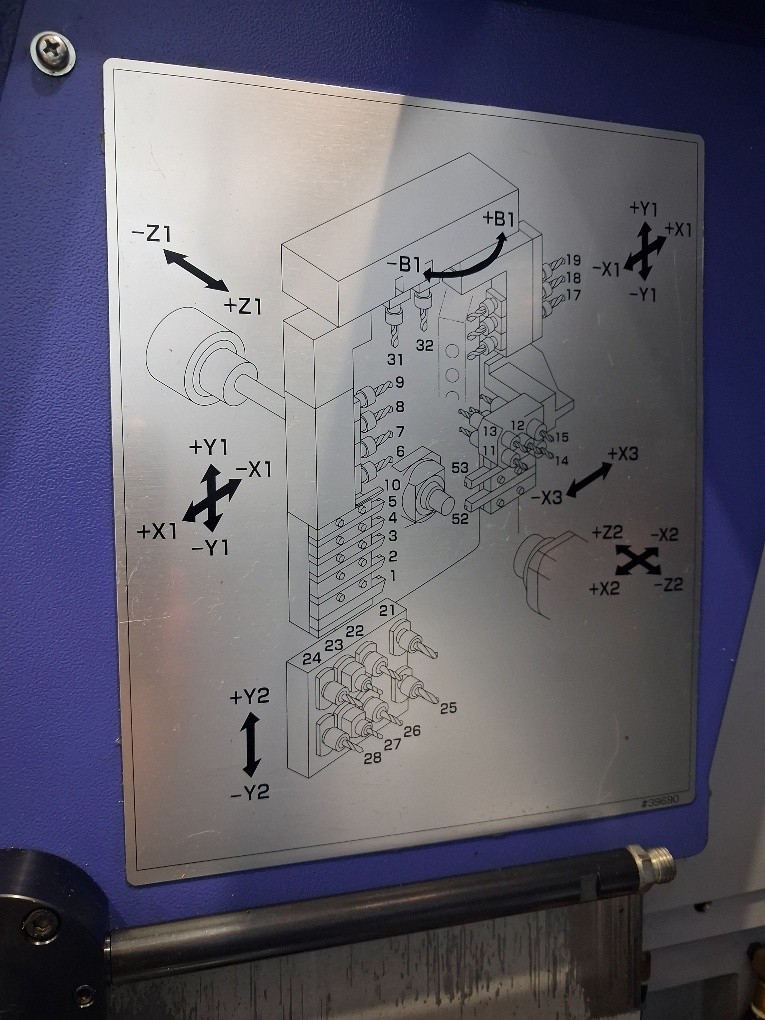

B axis including 3+3 ER16 rotating spindles for front/rear machining

recovery plate with 8 rotating tools and Y2 axis

counter spindle - 2 x Y axis - 2 x C axes.

Bar capacity 38 mm - max headstock stroke with/without guide bush 320/95 mm -

spindles speed 7.000 Rpm -

main/sub spindle motor 7.5-11/3.7-5.5 kW

Dimensions: 2740x1315x2120h mm - Weight kg. 4300
