Seven axis sliding head Cnc lathe Tsugami Mori BS32CE(S)-III
Seven axis sliding head Cnc lathe

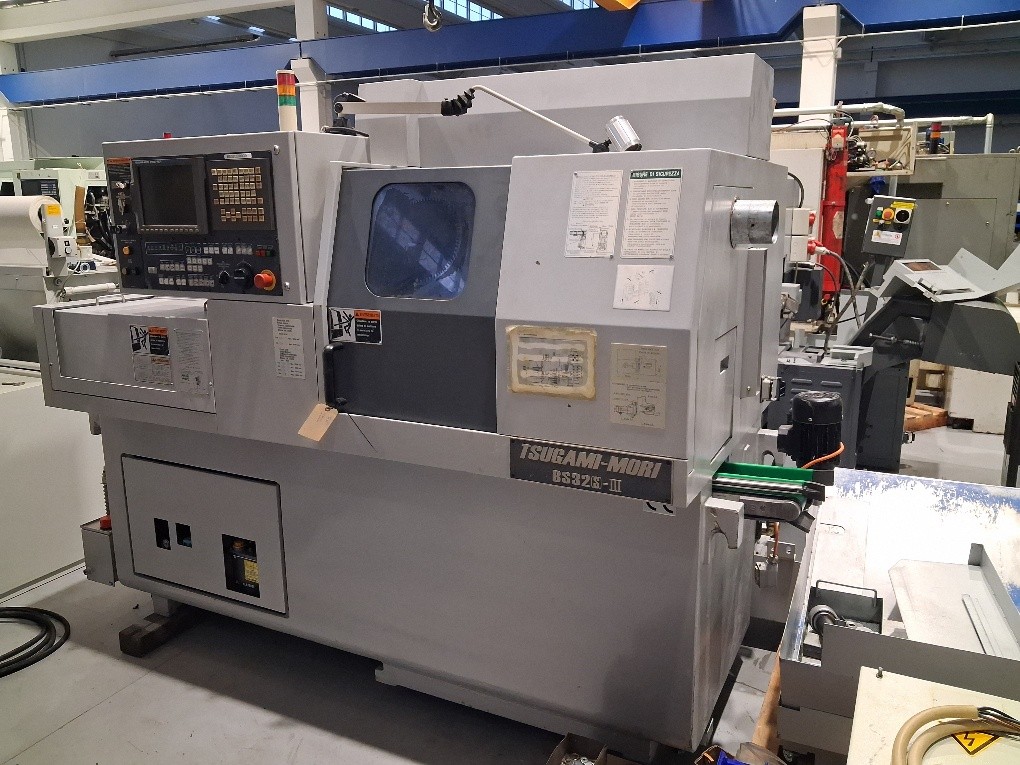

Seven axis sliding head Cnc lathe Tsugami Mori BS32CE(S)-III

  • Item number: C00676
  • Brand: Tsugami Mori
  • Model: BS32CE(S)-III
  • Year: 2006

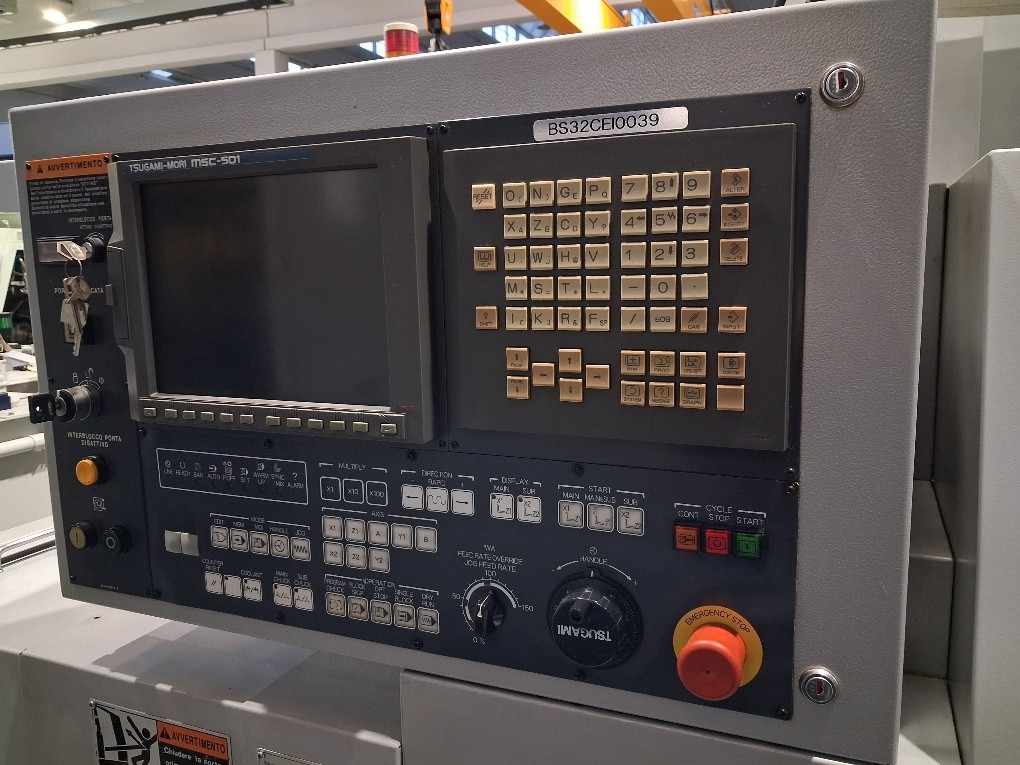

  • Control: Tsugami Mori MSC 501
Print Data sheet

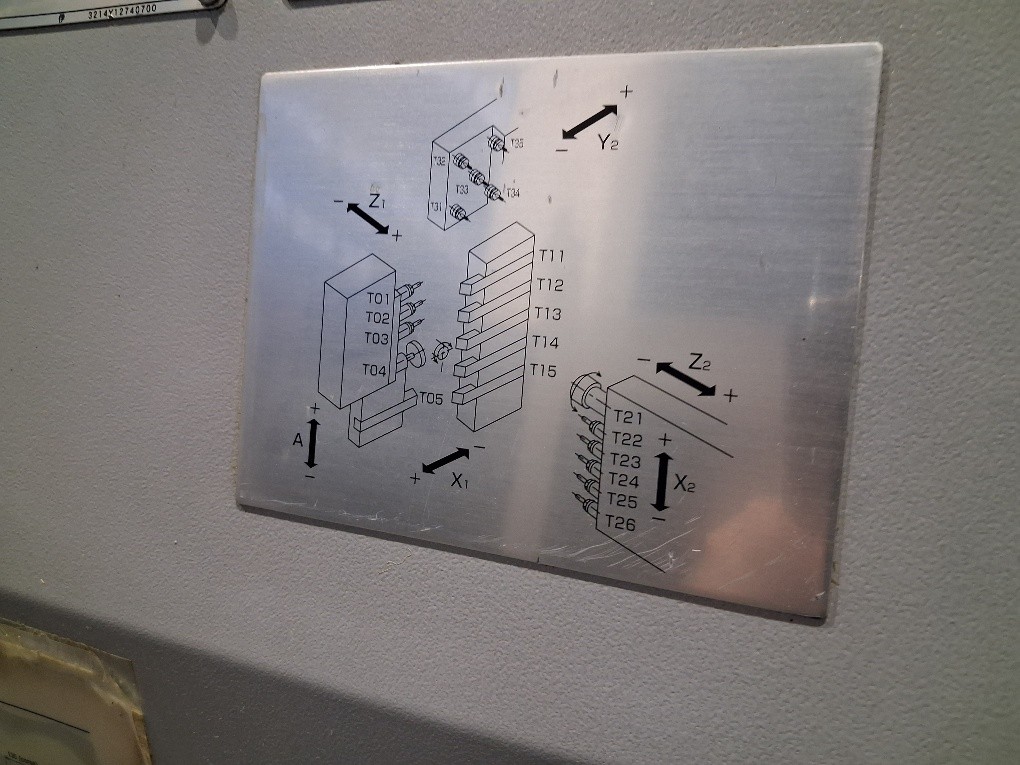

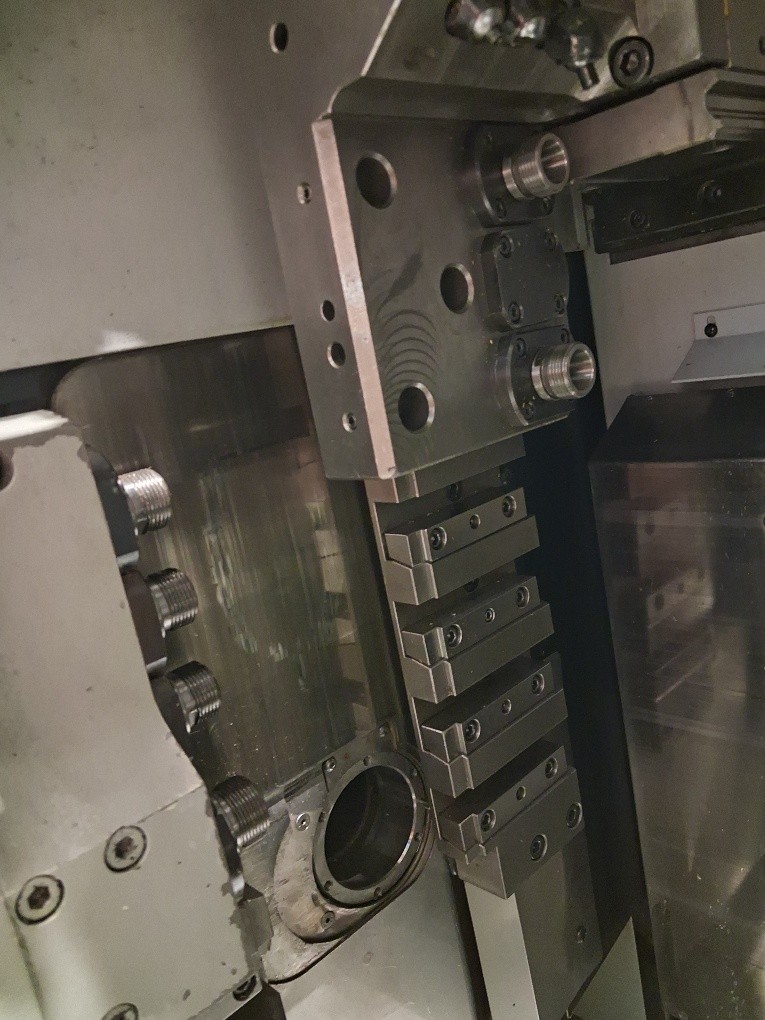

Total 21 tools (6 OD tools + 4 cross rotary tools, 3 front fixed tools+2 driven, 6 back tools, 3 are driven) - sub spindle - 5° indexing in sub spindle



Bar capacity 8-32 mm - max headstock stroke 250 mm -

main/sub spindle speed 7000/6000 Rpm -

main/sub spindle motor 3.7-5.5 / 1.5-2.2 kW

speed/power driven tools 5000 Rpm / 0.9 kW



Dimensions: 2150x1450x1825h mm - Weight 2800 kg.

  • 2 collet chucks
  • .. guide bushings type
  • .. collets
  • parts belt
  • transformer

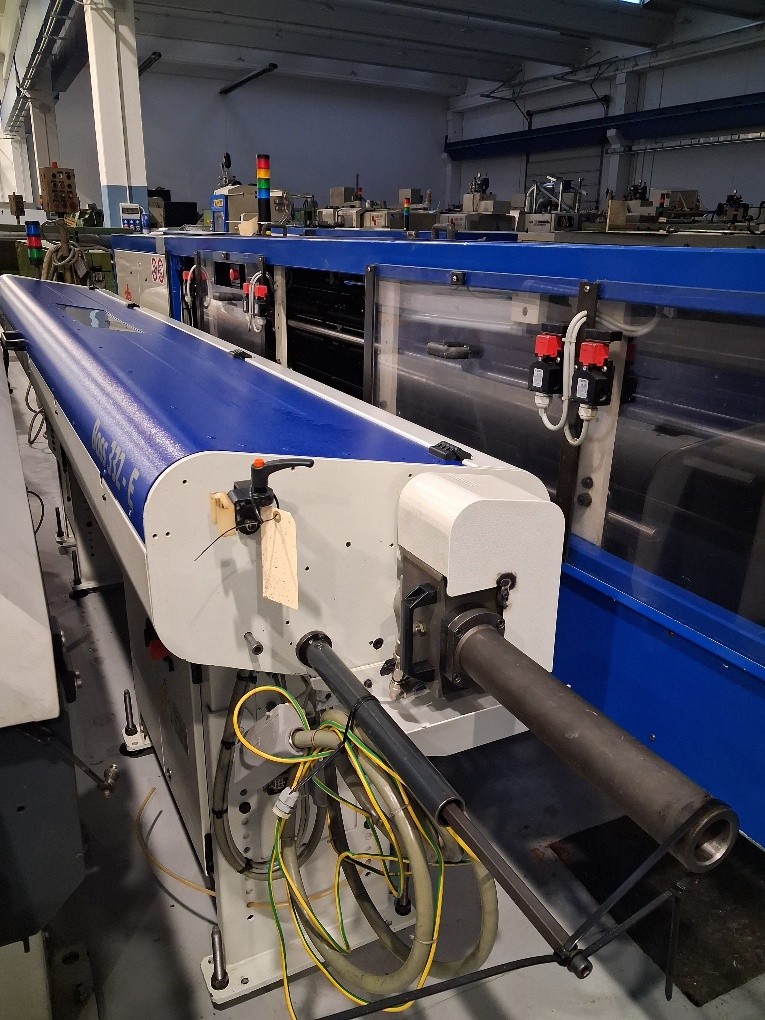

  • Iemca barloader mod. Boss 332-E/32 new in 2006
  • shaft ejector unit
  • manuals
  • CE declaration
🍪
