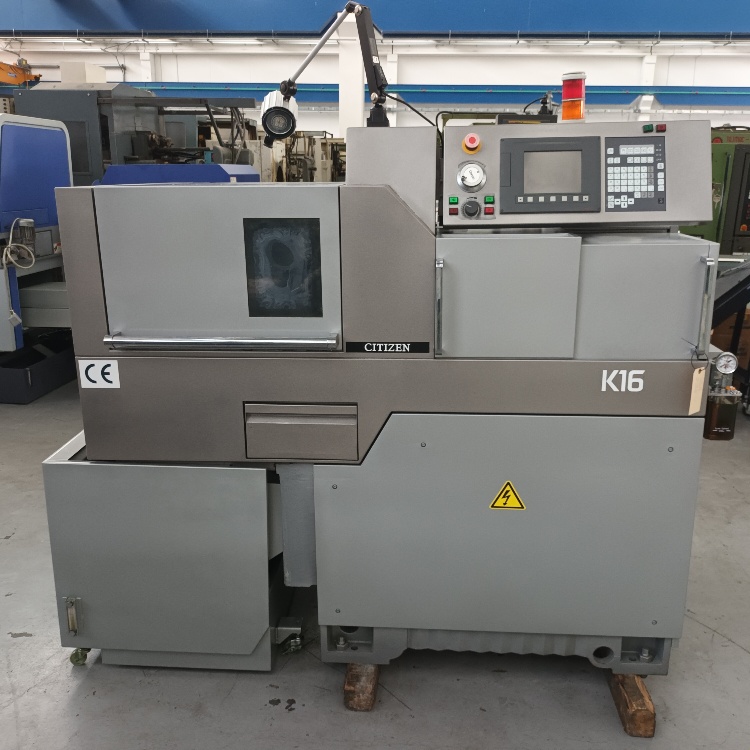

Sliding head Cnc lathe Citizen K16-VIIP

6 turning tools + 4 rotary gang tools -

sub spindle + 4 front drilling tools -

4 back drilling tools -

no. 2 x C axis

bar capacity 16 mm - turning lenght 200 mm

main spindle speed/power 15.000 Rpm / 2,2-3,7 kW

sub spindle speed/power 10.000 Rpm / 0,4-0,75 kW

cross rotary tools speed/power 6.000 Rpm / 0,4 kW

back tool post rotary tool drive speed/power 4.500 Rpm / 0,4 kW

Dimensions : 1820 x 1072 x 1680h - kg. 2.050
